intk4123c

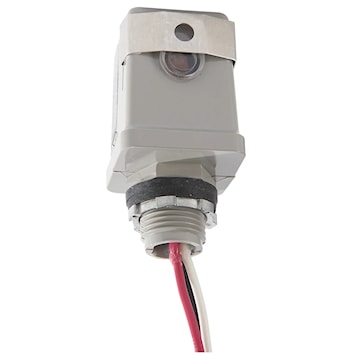

INTERMATIC K4123C 3100-4150W 1700-2300VA 208-277V Stem Mount Photo Control, Grey
intk4123c
INTERMATIC K4123C 3100-4150W 1700-2300VA 208-277V Stem Mount Photo Control, Grey
Price
$34.03
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:INTERMATIC
Manufacturer #:K4123C
Description
K4100 Series photo control feature stem mounting, thermal-type, controls with single and multi-voltage models. Thermal-type photo controls provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching OFF due to car headlights and lightning. Cadmium sulfide photocell. Sonic welded polycarbonate housing and lens to seal out moisture. Delay action eliminates load switching OFF due to car headlights and lightning. 6 inch leads. Light level slide adjustment. Controls come with a washer gasket and locking nut. Heavy duty die cast housings.
Mechanical bimetal switch with Cadmium Sulfide photocell
Delay feature prevents unwanted OFF switching
Gray plastic housing
1â„2"-14 NPSM threaded stem
Washer gasket and locking nut included
#18 AWG, 9" wire leads
Specifications
| Brand Name | Intermatic | Item Name | Photocontrol |
| Type | Thermal | Voltage Rating | 2.8 - 277 VAC |
| Ballast Load | 8.3 A, 1700 - 2300 VA | Sensor Type | Thermal |
| Mounting Type | Stem Mount | Amperage Rating | 15000 mA |
| Frequency Rating | 50/60 Hz | Power Rating | 3100 - 4150 W Tungsten |
| Terminal Connection | 6 in Color Coded Wire Lead | Material | Plastic |
| Color | Gray | Dimensions | 1-9/16 in L x 1-9/16 in W x 3 in D |
| Temperature Rating | -40 to 158 °F | Standards | UL Listed, CSA Certified, California Title 20, 24 Compliant |
| Application | For Dusk to Dawn Lighting Control | UPC | 078275029590 |
Packages
| 1 - UNIT - 1 | 12 - UNIT - 12 |
