gmlldxdunv6024

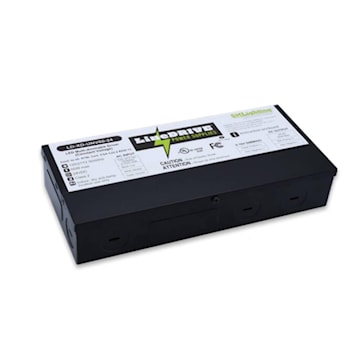

GM LIGHTING 60W 24V LineDRIVE XD Electronic LED MULTI-Dimmable Power Supply
gmlldxdunv6024
GM LIGHTING 60W 24V LineDRIVE XD Electronic LED MULTI-Dimmable Power Supply
Price
$109.65
/ EA
Inventory
Available for delivery
Available for pick up at
Abbotsford
Manufacturer:GM LIGHTING
Manufacturer #:LD-XD-UNV60-24
Description
Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.
Specifications
| Brand Name | GM Lighting | Sub Brand | LineDRIVE |
| Item Name | Electronic LED Driver | Type | Multi-Dimmable |
| Color | Black | Input Voltage | 120V / 277V |
| Input Current | 0.75 A at 120 V, 0.33 A at 277 V | Output Voltage | 24VDC |
| Output Current | 2.5 A | Output Power | 60 W |
| Series/Model | LineDRIVE Series | Material | Steel |
| Frequency Rating | 50/60 Hz | Efficiency (%) | 83/85 |
| Cord Length | 12 in | Power Factor | >0.94 |
| Length | 8.29 in | Width | 4.1 in |
| Height | 1.59 in | Temperature Rating | -40 to 60 °C |
| Degree of Protection | IP20 | Environmental Conditions | Dry and Damp Location Rated |
| Standards | 47CFR Part 15, Class B, FCC Approved, Title 24 Compliant, UL Listed, UL Class 2, UL Type HL | Application | For Indoor |
| UPC | 849951019057 |
Packages
| 1 - UNIT - 1 | 15 - UNIT - 15 |
