HOFHG0900403
HOFFMAN HG0900403 Exhaust Fan Grille MCLF
Description

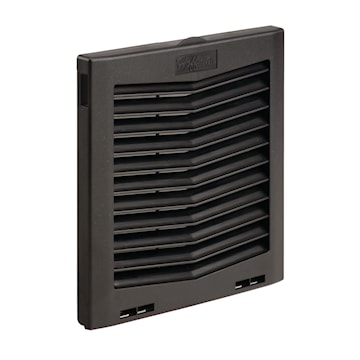

HG Filter Fan Exhaust Grilles have unique click-fit design which quickly install on enclosure sides. This HG Filter Fan Exhaust Grille fits HF09 fans, HG0900403 item measures 9-inch colored Black rated IP54.
Click-Fit design quickly installs into enclosure wall; no tools or screws required
Opens with the flick of a finger for easy filter replacement
Enclosure side wall mounting
Standard rope gasket provides proper seal to the enclosure
Similar cut-out sizes as other filter fan manufacturers
Hinged grille remains attached after opening
Size range from 4 inch (102 mm) to 13 inch (325 mm)
Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
Specifications
| Brand Name | nVent Hoffman | Item Name | Exhaust Fan Grille |
| Grill Dimensions | 209 mm W x 42 mm D x 208 mm H | Grill Material | Plastic |
| Color | Black | Duct Size | 9 in |
| Mounting | Wall | Series/Model | MCLF |
| Air Flow | 21 - 484 ft³/min | Finish | Matte |
| For Use With | HG09 Filter Fan | Standards | UL/cUL E482010 Listed, CE, EAC, RoHS Compliant, IP54 |
| Application | Industrial Automation, Automotive Assembly, Package Handling Equipment, Food And Beverage Process Controls, Wind Energy Systems | UPC | 783510343279 |
Packages
| 1 - UNIT - 1 |
