HOFCDACCDR

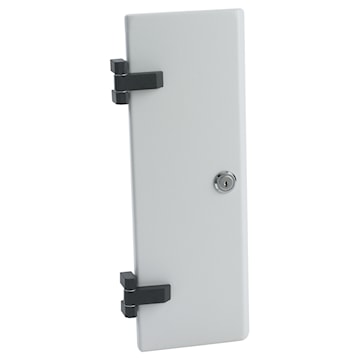

HOFFMAN CDACCDR Door access drive steel 5.15x13.15"
Description
Drive door can be installed only on enclosures to access internal disk drives. Key-locking latch is included. An installation template is included in the installation instructions. All installation hardware is included. RAL 7035 light-grey polyester powder paint finish. Hinges have RAL 9005 black polyester powder paint finish. Maintains NEMA type-12 rating. Cannot be used on 120 mm deep enclosures.
Installation template and hardware are included
Cannot be used on 120-mm deep enclosures
Hinges have RAL 9005 black polyester powder paint finish
Specifications
| Brand Name | Hoffman | Sub Brand | Concept |
| Type | Single Door | Length | 14.10 in |
| Width | 4.61 in | Depth | 0.56 in |
| Material | Mild Steel | Thickness | 1.52 mm |
| Color | Light Gray | Finish | Powder Coated |
| Application | Controls and Drives | UPC | 783510152864 |
Packages
| 1 - UNIT - 1 |
