INTEI205W

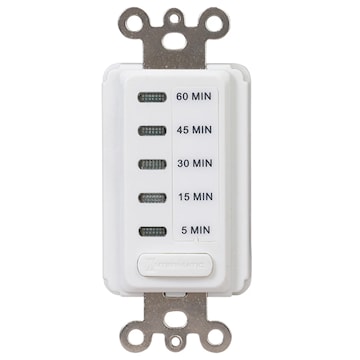

INTERMATIC EI205W 1-Pole 1800W 15Amp 120V 5/15/30/45/60-Minute EI200 Series Decorator Electronic Auto Shut-OFF Timer, White
Description
EI200 Series decorator electronic auto shut-off timer provides silent operation in time ranges. Replaces single-pole switches in a variety of applications. Requires neutral wire. Single button time selection. Operates all load types including CFLs, LED lamps and fans. Meets title 24 requirements.
No programming required.
Provides silent operation in time ranges from five minutes to 1 hour.
Single-button time selection, with some models having a HOLD mode, for continuous ON operation.
Replaces single-pole switches in a variety of applications.
Incandescent/fluorescent/CFL/LED compatible.
For use with decorator-style wall plate (not included).
Requires neutral connection.
Specifications
| Brand Name | Intermatic | Item Name | Digital Timer |
| Type | Electronic, Countdown, Auto Shut-Off, 1-Pole | Voltage Rating | 120 V |
| Amperage Rating | 15 A | Contact Configuration | SPST - 1 NO |
| Contact Rating | 8.3 A at 120 VAC (Tungsten-Incandescent), 15 A at 120 VAC (Resistive-Heater), 8 A at 120 VAC (Ballast-Magnetic), 1800 W | Dimensions | 1-3/4 in W x 1.44 in D x 2.79 in H |
| Frequency Rating | 50/60 Hz | Time Range | 5/15/30/45/60 min |
| Number of Poles | 1 | HP Rating | 1/2 hp at 120 VAC |
| Mounting | Wall/Flush | Material | Thermoplastic |
| Color | White | Temperature Rating | 32 - 122 °F |
| Standards | cULus Listed, California Title 24 Compliant | Application | Indoor, CFLs Lighting, LED Lighting, Fans, HVACR |
| UPC | 078275108479 |
Packages
| 1 - UNIT - 1 | 6 - UNIT - 6 |
