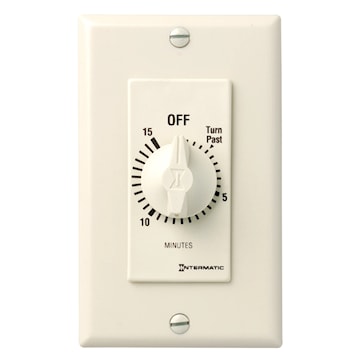

INTERMATIC FD15MAC 1-Pole 1-Throw 125-277V 15-Minute Decorator Timer, Almond
intfd15mac
INTERMATIC FD15MAC 1-Pole 1-Throw 125-277V 15-Minute Decorator Timer, Almond
Price
$54.55
/ EA
Inventory
Available for backorder
Unavailable for pick up
Abbotsford
Manufacturer:INTERMATIC
Manufacturer #:FD15MAC
Description
15 MINUTE 125-277 V SPST ALMOND
15-Minute timer
SPST (Single-Pole Single-Throw)
Breaks circuit at end of timing cycle
No electricity required to operate
Replaces any standard or decorator single- or multi-gang wall switch
Automatically limits ON time for energy consuming loads
Quick and easy installation
Incandescent/fluorescent/CFL/LED compatible
No neutral connection is required
Decorator switch plate not included
Specifications
| Brand Name | Intermatic | Item Name | Analog Timer |
| Type | Decorator, Spring Wound, Auto-Off | Supply Voltage | 125 - 277 VAC |
| Timing Range | 0 - 15 min | Contact Configuration | (1) SPST - 1 NO |
| Contact Rating | 7 A at 125 VAC (Tungsten), 20 A at 125 VAC (Resistive), 10 A at 250/277 VAC (Resistive) | Dimensions | 2.79 in H X 1.6 in W X 1.19 in D |
| Amperage Rating | 15 A | Frequency Rating | 50/60 Hz |
| Power Source | 1 hp at 120 VAC, 2 hp at 240 VAC | Number of Poles | 1 |
| Terminal Connection | Teeter Type | Material | Plastic |
| Color/Finish | Almond | Mounting | Wall |
| Temperature Rating | -40 to 104 °F | Warranty | Limited 1-year Warranty |
| Standards | cCSAus Certified, UL Listed, HVACR | Application | Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR |
| UPC | 078275072916 |
Packages
| 1 - UNIT - 1 | 6 - UNIT - 6 |
